Features

• 2mm thickness round tube and 3mm optimized motor housing design for extra strength and stability
• Max. load capacity is 800N per column.
• Fit with JCB35N series Jiecang control boxes to realize max speed 35mm/s
• Low noise level <50dB
• Max. Bending moment: 150N.m
• Standard installation length: 560mm
• Standard stroke length: 650mm

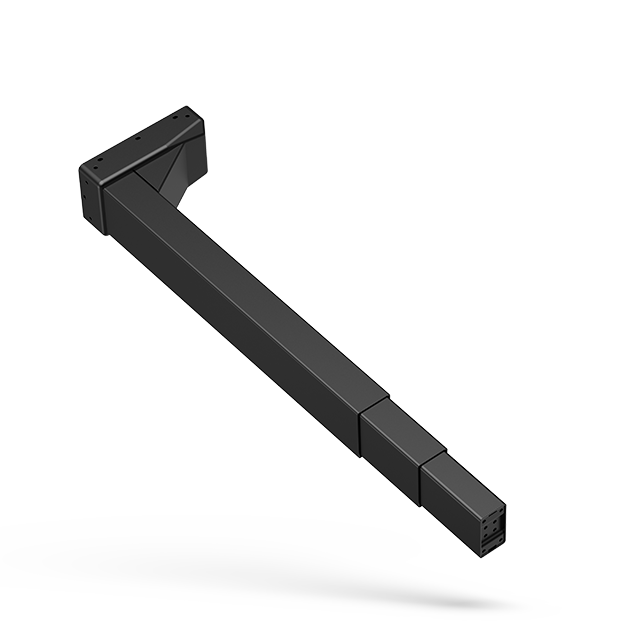

• Column dimensions: outer tube rectangle 80x50x1.5mm; middle tube: oval 75x45x1.5mm; inner tube: oval 70x40x2mm
• Motor housing dimension: 190x96x48mm
• Motor: Silent design high power motor
• Hall sensor enabling parallel drive
• Surface: Powder coating with standard color: White(RAL9016), Black(RAL9005), Grey(RAL7045)
